1024 Thermal imaging shutter ATM-SU-172

Short Description:

1024 Thermal imaging shutter

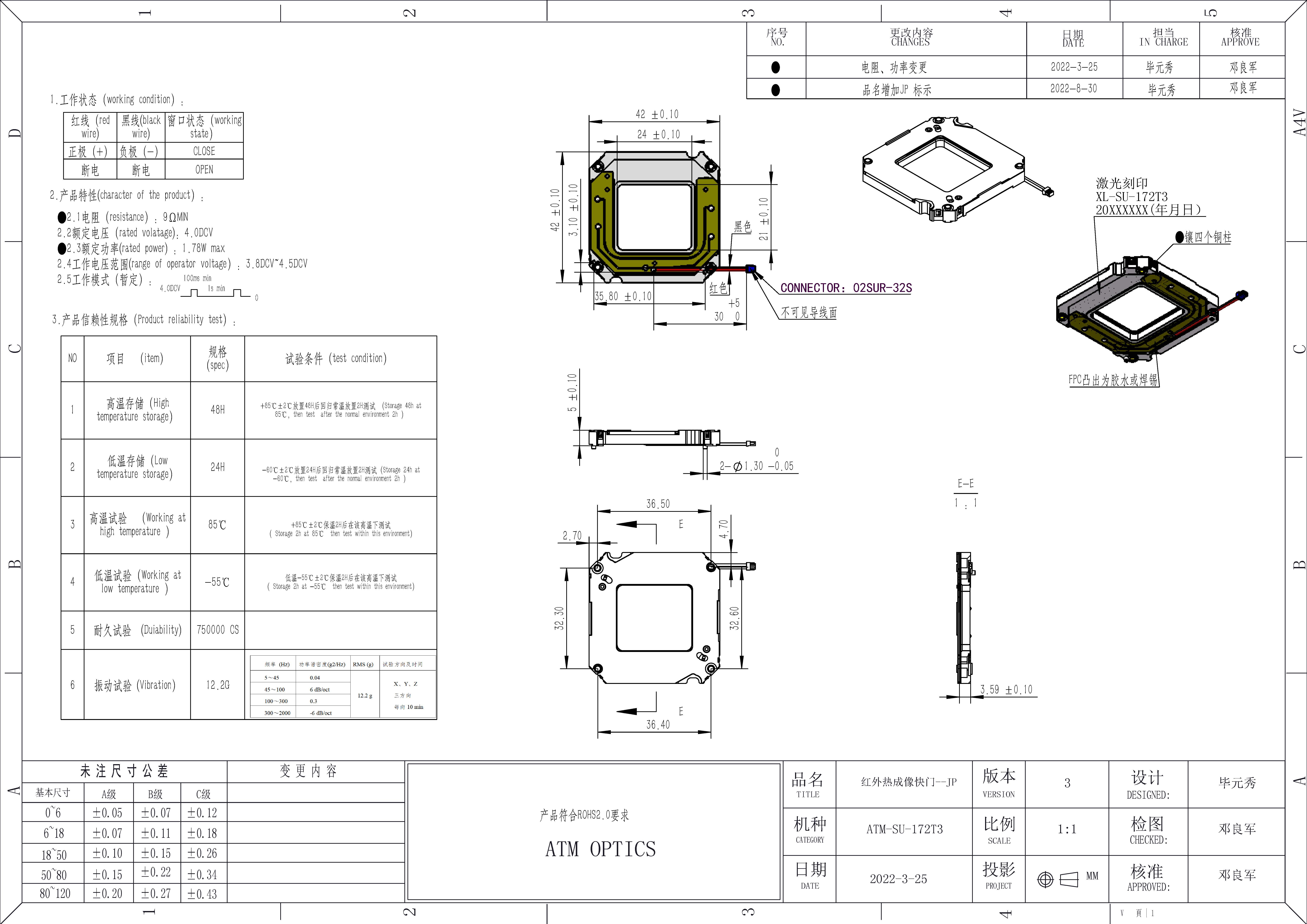

Shutter Model: ATM-SU-172

Dimensions: 42*42*5mm

Window: 24*21mm

Blades: 4 pcs

Voltage: DC-4.0V

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    ATM-SU-172 T3


    The thermal imaging shutter is used in a thermal camera to act as a reference for periodic detector calibrations in order to provide a more accurate image of the thermal scene the camera is capturing. It is built between the lens and the detector, and the shutter switch is manually activated by setting the time interval. The presence of the shutter is to accommodate the temperature measurement defect of the detector. Since the low-end detectors and detectors are currently subject to process level and software technology, they cannot be adaptively adjusted according to the external temperature and humidity.
