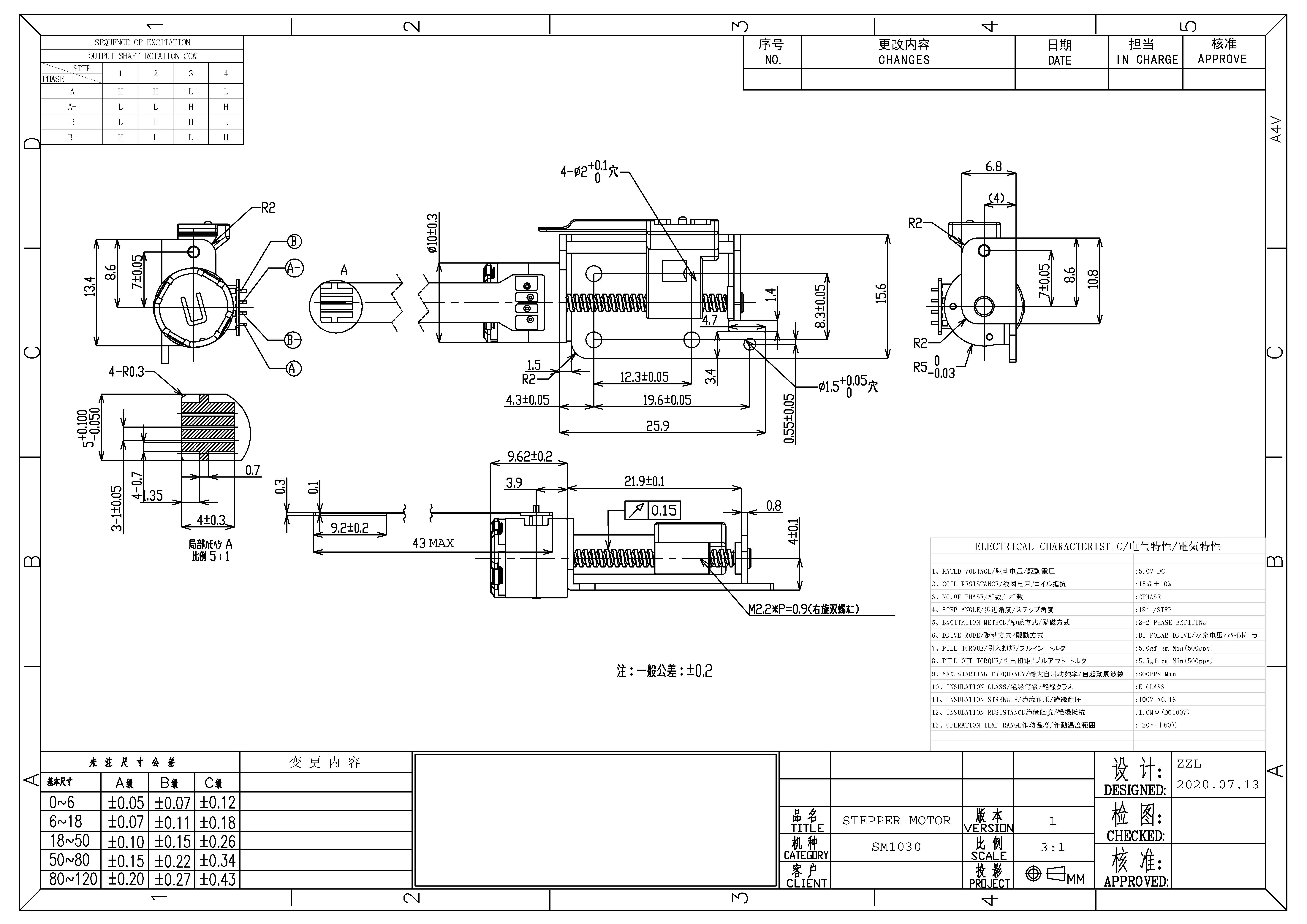

Custom microstepping motor, micro drive ATM-SM1030

Short Description:

Model: ATM-SM1030

Phase: 2

Step Angle: 18°/step

Drive Mode: Bi-Polar Drive

Pull Torque: 5.0gf-cm Min(500pps)

Pull Out Torque: 5.5gf-cm Min(500pps)

Product Detail

Product Tags

The micro stepping motor is a kind of linear screw motor. Its working principle is to use electronic circuit to supply power when DC is changed. The angular displacement is controlled by controlling the number of pulses, so as to achieve accurate posioning. At the same time, the speed and acceleration of motor rotation can be controlled by controlling the pulse frequency, so as to regulate speed.
